Overview:
- Dimension: 46.5 x 7.8 x 4.2 cm
- Item model number: F-1189C
- OE#: 5013595AB ; 5013595AA ; 82204691 ; 82208300
- Dealer installed option-requires housing

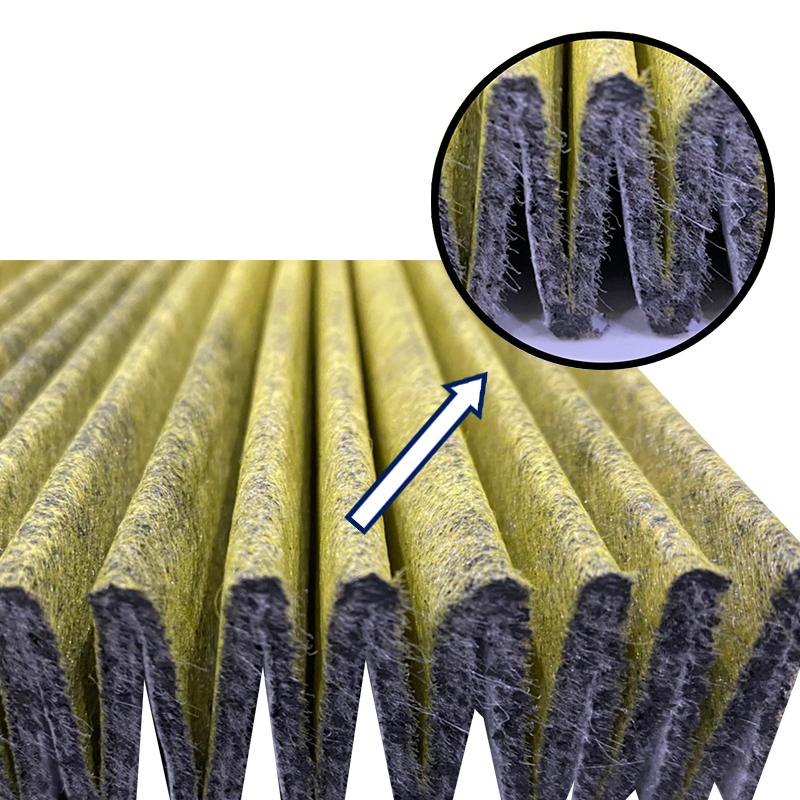

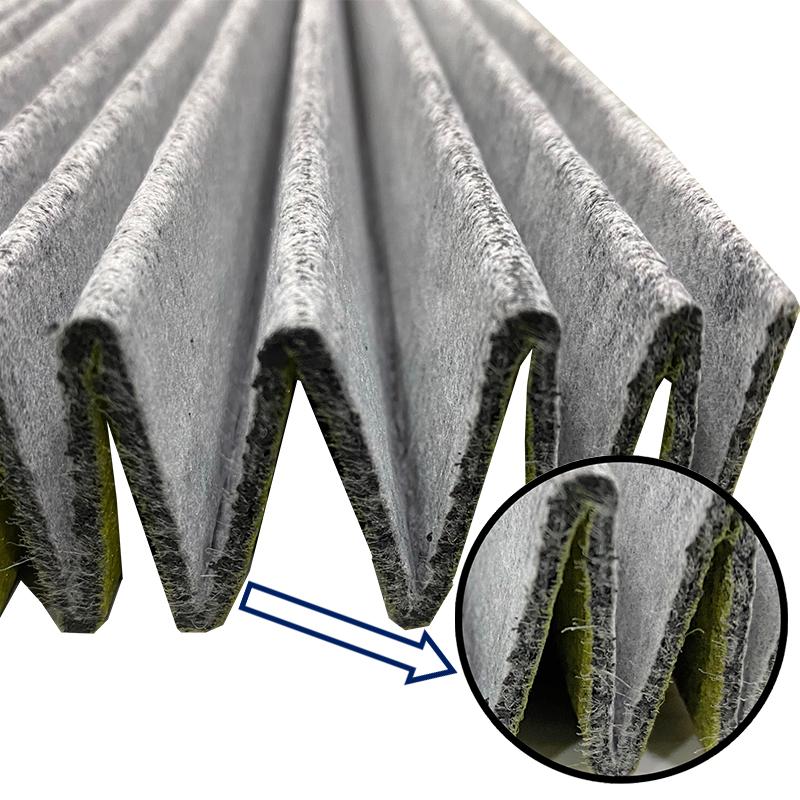

- Premium three-layer design filter with efficient purification
- We suggest changing the cabin air filter in every 10,000km or 1 year
Features:
- Premium thick carbon activated layer with superior odor absorption
- Effectively filtering out pollen, diesel soot, particulate matter (PM2.5), pet dander, ozone, mold, bacteria, dust & allergens
- Combining technologies to provide premium cabin air filtration and help prevent musty odors and mold from forming inside ventilation
- Fine handcrafted to ensure the premium quality of products. Solid frame to prevent deformation
Fit for:
Jeep |
Grand Cherokee (1999-2004) L6 4.0L Dealer installed option-requires housing. |
Jeep |
Grand Cherokee (2007-2009) V6 3.0L Dealer installed option-requires housing. |
Jeep |
Grand Cherokee (2005-2010) V6 3.7L Dealer installed option-requires housing. |
Jeep |
Grand Cherokee (1999-2009) V8 4.7L Dealer installed option-requires housing. |
Jeep |
Grand Cherokee (2005-2010) V8 5.7L Dealer installed option-requires housing. |
Jeep |
Grand Cherokee (2006-2010) V8 6.1L Dealer installed option-requires housing. |
Cross-reference: CF10363 ; AQ1097 ; P3704WS ; LA779 ; PC5599 ; C15599 ; MC1021 ; WIX 24903

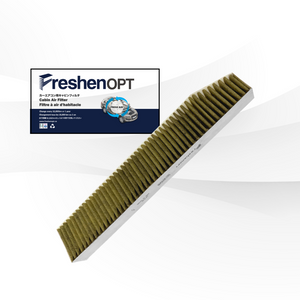

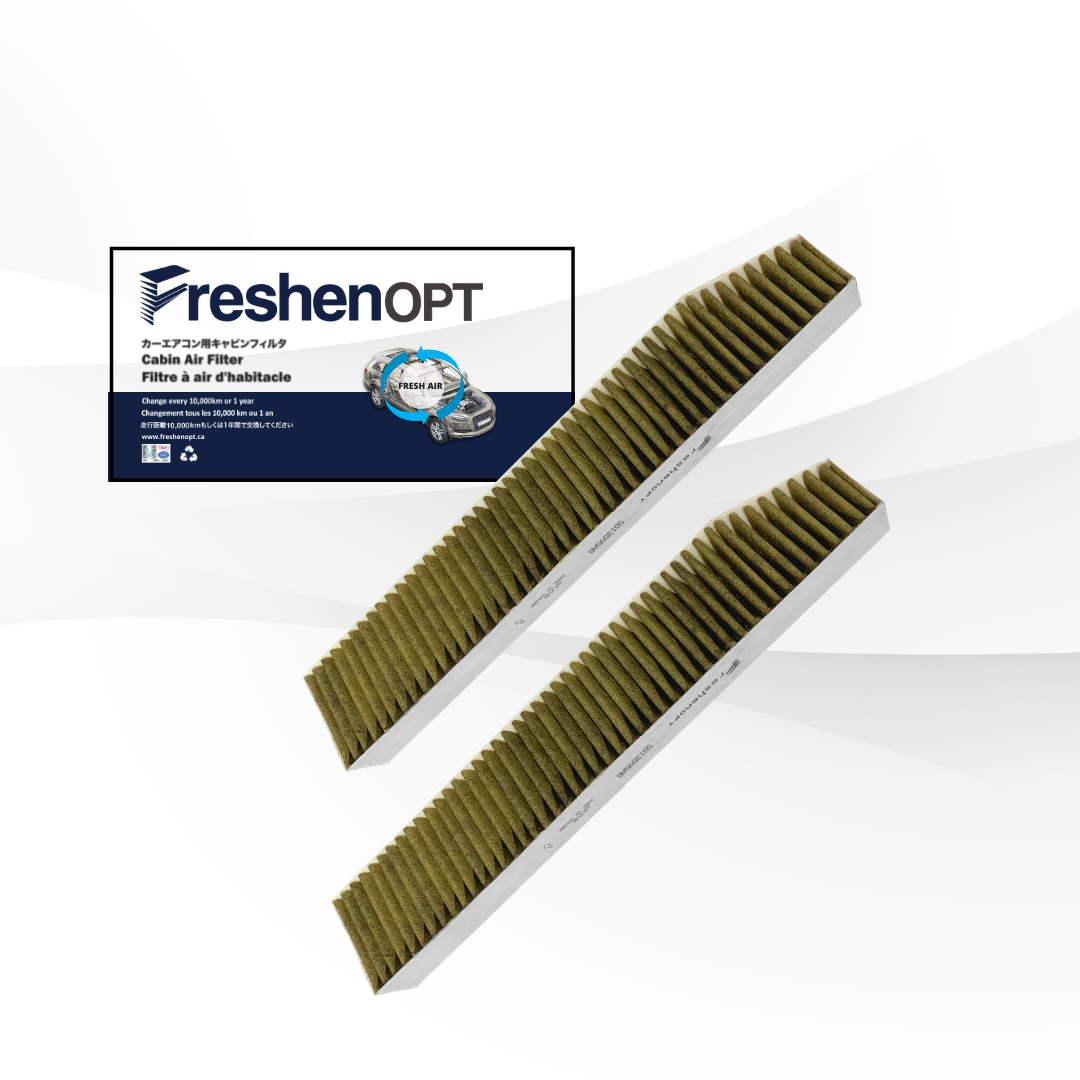

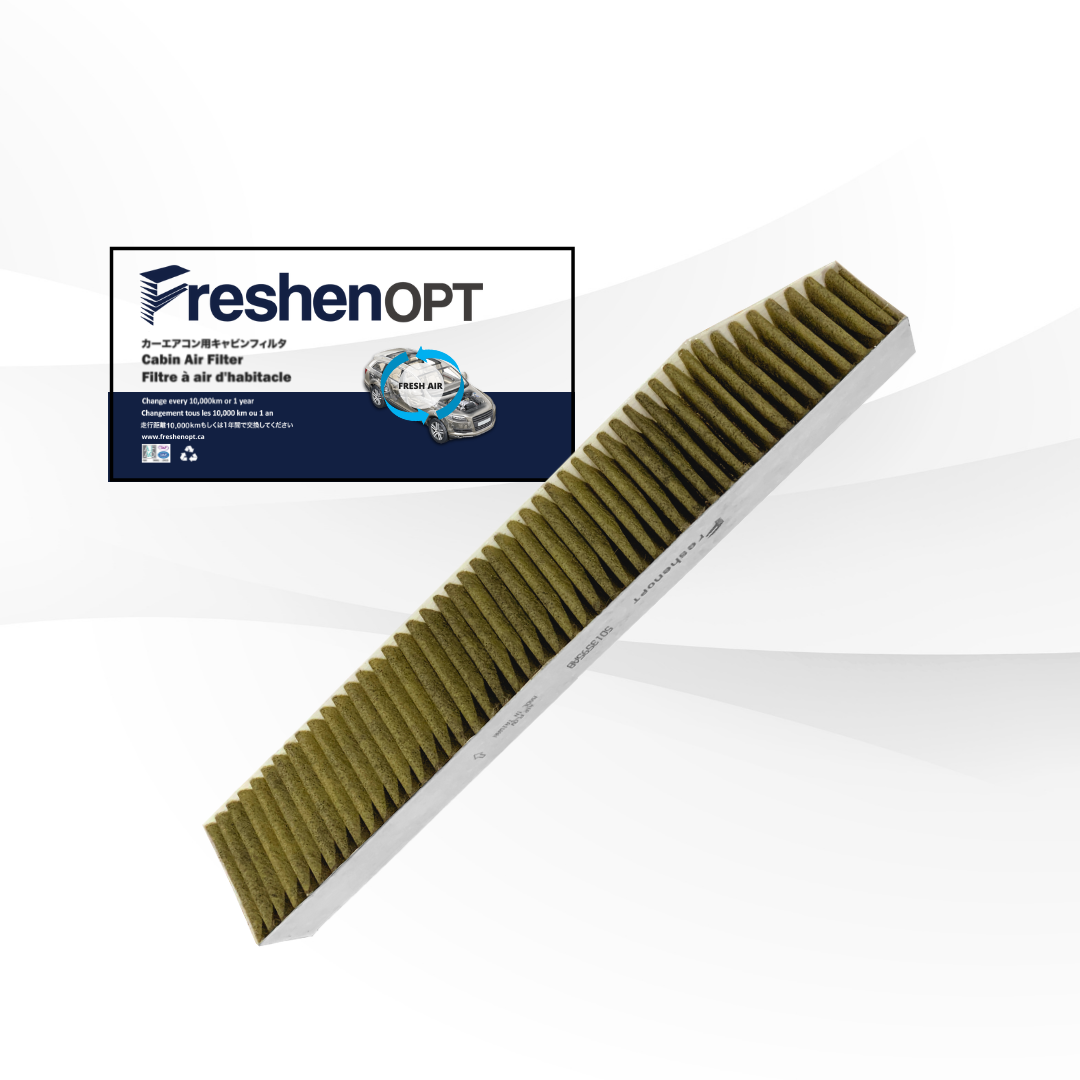

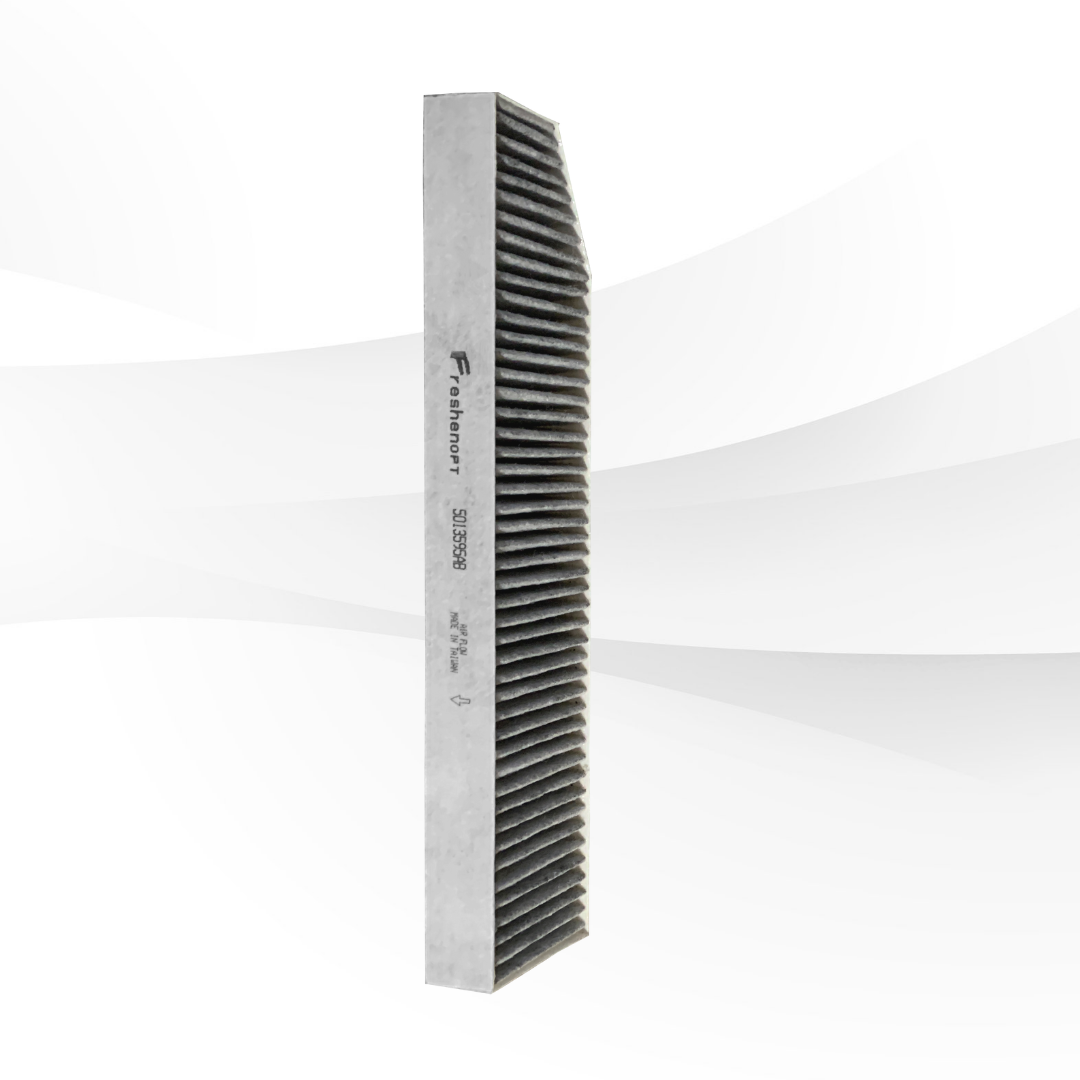

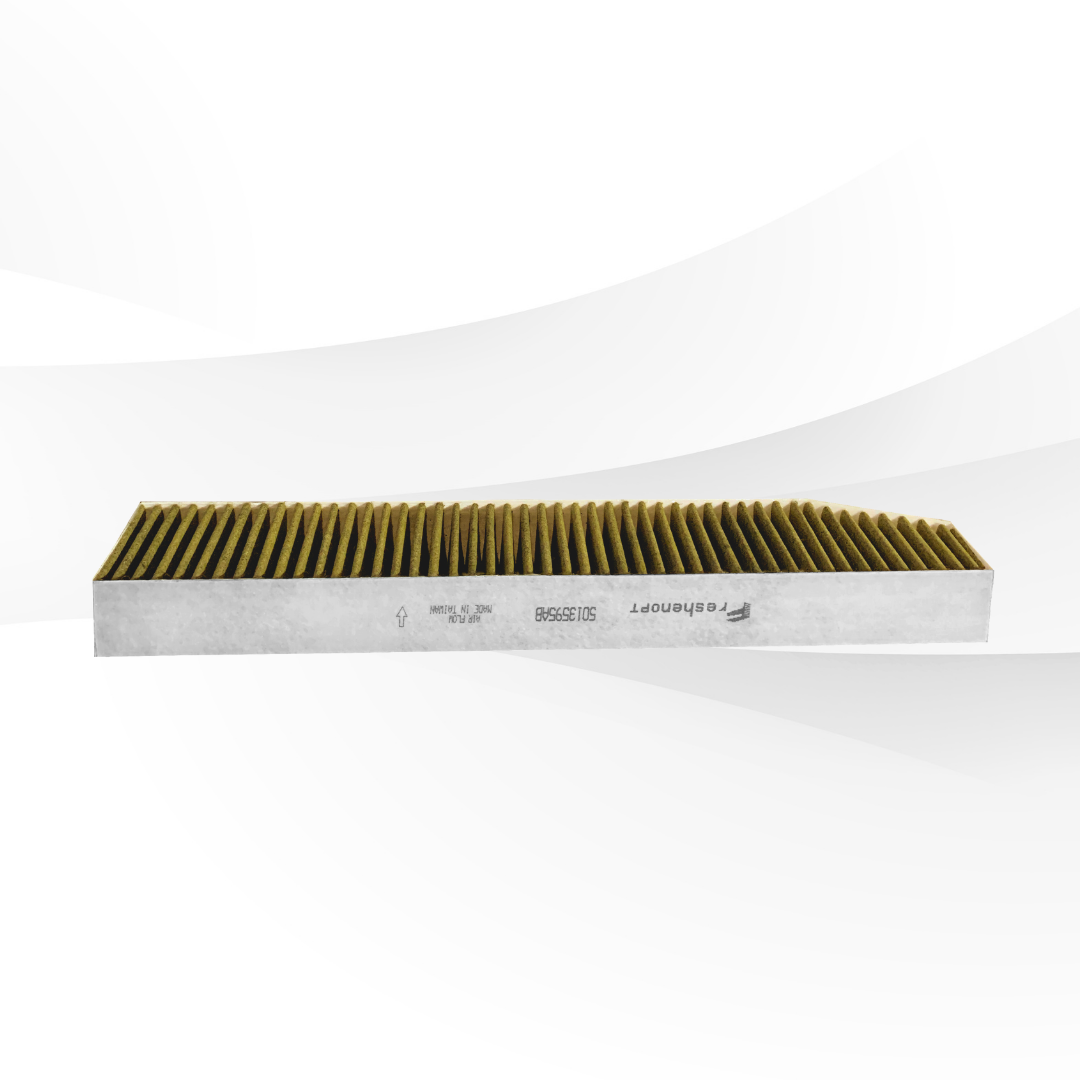

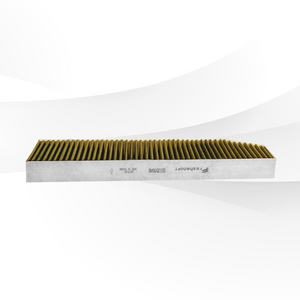

FreshenOPT F-1189C
The primary purpose of cabin air filter is to help clean the air that enters into your vehicle through the ventilation system, keeping the air inside your vehicle clean and fresh.
Location of this cabin filter: Passenger side under the hood. Tools: Standard screwdriver + T30 Torx Wrench.
Please note: **No vehicles came standard with a cabin filter, so if you want to install a cabin filter in your vehicle you will first need to buy a cabin filter housing from a Jeep Dealer.
When you change your filter (maybe variant for your model. Please see the owner’s manual or find a local mechanic for exact instructions for the particular model):
- Open the hood.
- Grasp the cowl weather-strip on the passenger side and pull it outward to remove.
- Gently lift the cowl vent screen enough to locate the plastic air inlet cover or filter housing, depending on if this is initial installation.
- Take the filter housing you bought from the dealer and insert it into the inlet opening and secure in place with the seal side down. With the housing in hand with seal side down. The housing will have a tab on the left hand end of the housing. This should slide under the far left hand side of the air inlet opening under the cowl vent screen. Once this is in place properly, the two center holes in the housing should line up with the two holes present on the center of the air intake under the cowl vent screen. Take the two push type fasteners that came with your housing kit and push them securely into these center holes.
- Install the filter into the housing. The filter can only be installed one way.
- Install remove parts by reversing the removal procedure and it’s done.
